Overmolding Molded Plastic Injection Parts Drawing Design

Basic Information
Place of Origin: CHINA
Brand Name: OEM
Minimum Order Quantity: 300KG
Price: Negotiable
Packaging Details: CARTON; PALLET OR OTHERS
Delivery Time: 35 work days
Payment Terms: T/T
Detail Information
INJECTION PART: PLASTIC PLASTIC INJECTION PARTS: VARIETY COLORS
PP INJECTION PARTS: VARIETY FINISHES PE INJECTION PARTS: VARIETY USAGE
PLASTIC PARTS: INJECTION Molding Type PS PARTS: PLASTIC INJECTION
POM PARTS: INJECTION PROCESSING PU PARTS: PLASTIC INJECTION
High Light:

Overmolding Plastic Injection Parts

,

Plastic Injection Parts Drawing

,

Overmolding injection molded part drawing


Product Description

Plastic Injection Parts PP PC ABS POM Many Material And Usage Variety Of Colors And Surface Finish



Description:

In case you were wondering, they’re parts made using plastic injection molding. In this process, hot liquid plastic is forced into a mold of the desired shape, resulting in a plastic piece that, when dried, permanently takes that shape. In the end, you have custom molded plastic parts.

Most of the plastic parts you see every day are made by molding plastic with the help of machines. At JF, we’ve created plastic injection molding parts for everything from specially designed Lipstick box to other use parts.



Specifications:

Warranty(Year) 3-Year
Place of Origin Jiangsu, China
Material PP , PS, PE, PA, POM etc
Design Customized
Product name Plastic injection parts
Color Variety of colors and finishes
Applicable Industries Variety of industries
Supply Ability 5000 Piece/Pieces per Month
Packaging & Delivery

Export packing or customized by customer



Port Shanghai
Lead Time

first order 35 work days





Plastic Part Injection Molding Capabilities
We have the capability to do insert molding, overmolding, and family molds, and we offer a variety of plastic materials, colors and surface finishes. In addition, we can provide secondary manufacturing processes such as painting, printing and chrome plating. We’ve made plastic parts for the automotive, medical, appliance, outdoor industries, among others. Plus, we’ve helped many entrepreneurs turn their ideas into marketable products (see our Case Studies page for some examples).



What is plastic injection moulding process?

THE BASIC INJECTION MOLDING PROCESS

STEP 1: THE MOLD CLOSES. Step 1 of the Injection Molding Process. ...

STEP 2: INJECTION. The heated plastic is injected into the mold. ...

STEP 3: COOLING. ...

STEP 4: PLASTICIZING THE RESIN. ...

STEP 5: EJECTION. ...

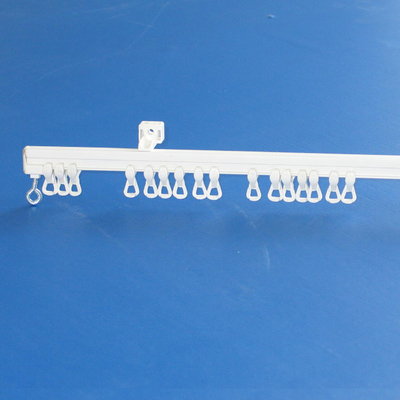

STEP 6: REMOVING THE RUNNER AND PACKAGING.Overmolding Molded Plastic Injection Parts Drawing Design 0

Materials used for injection molding

All thermoplastics can be injection molded. Some thermosets and liquid silicones are also compatible with the injection molding process.

They can be also reinforced with fibers, rubber particles, minerals or flame retardant agents to modify their physical properties. For example fiberglass can be mixed with the pellets at ratios of 10%, 15% or 30% resulting in parts with higher stiffness. We list here several commonly used injection molding materials for reference.

Polypropylene (PP)

The most common Injection molding plastic. Excellent chemical resistance. Food-safe grades available. Not suitable for mechanical applications.

ABS

Common thermoplastic with high impact resistance, low-cost & low density. Vulnerable to solvents.

Polyethylene (PE)

Lightweight thermoplastic with good impact strength & weather resistance. Suitable for outdoor applications.

Polystyrene (PS)

The Injection molding plastic with the lowest cost. Food-safe grades available. Not suitable for mechanical applications.

Polyurethane (PU)

Thermoplastic with high impact strength and good mechanical properties & hardness. Suitable for molding parts with thick walls.

Nylon (PA 6)

Engineering thermoplastic with excellent mechanical properties and high chemical & abrasion resistance. Susceptible to moisture.

Polycarbonate (PC)

The plastic with the highest impact strength. High thermal resistance, weather resistance & toughness. Can be colored or transparent.

PC/ABS

Blend of two thermoplastics resulting in high impact strength, excellent thermal stability, and high stiffness. Vulnerable to solvents.

POM (Acetal/Delrin)





Custom Injection Molding Done Your Way

JF Rubber & Plastic co.,ltd founded in 2009. Our plastic molding expertise continuously grows through innovation, advancement in technology, and excellence in service.

Provides practical solution for manufacturers in a wide range of industries. Our complete design and manufacturing process includes part modeling and mold design, prototyping, tool sourcing, production planning, sample verification, process control, decorating, secondary processing, and packaging.

We are conveniently located in Jiangsu Province of China where is near Shanghai with only 1 hour driving.

We’re excited that you found us and look forward to hearing about your needs.

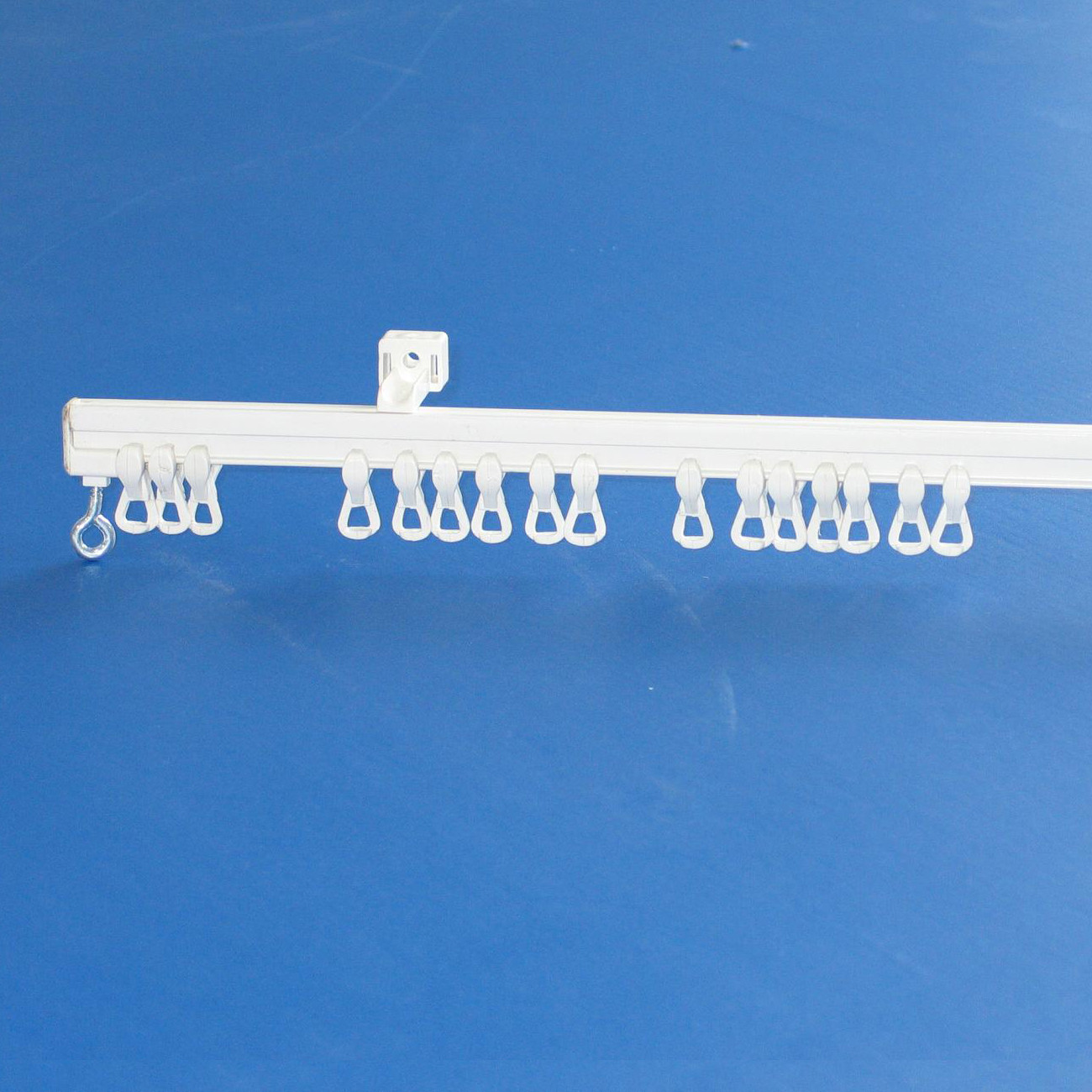

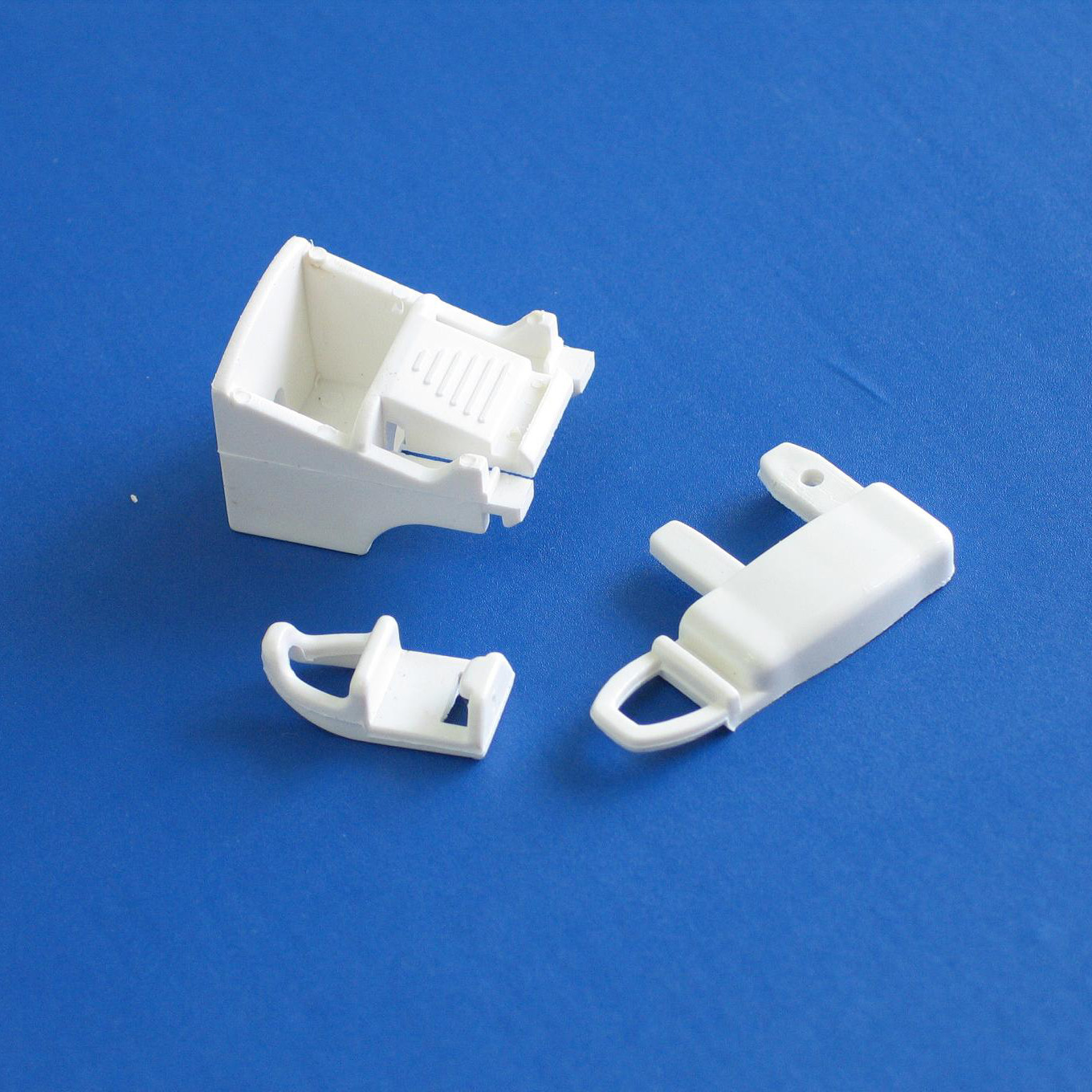

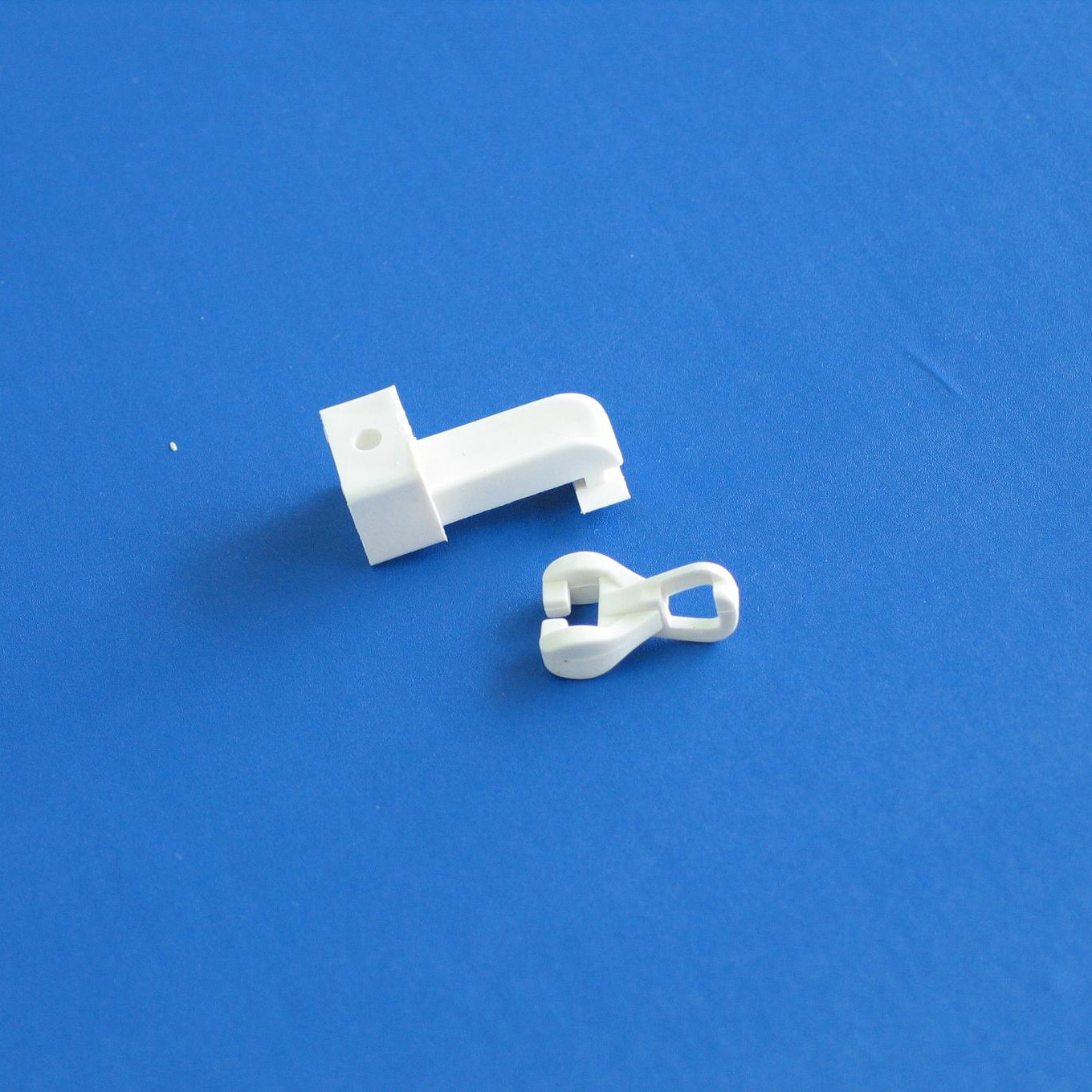

Overmolding Molded Plastic Injection Parts Drawing Design 1Overmolding Molded Plastic Injection Parts Drawing Design 2Overmolding Molded Plastic Injection Parts Drawing Design 3
