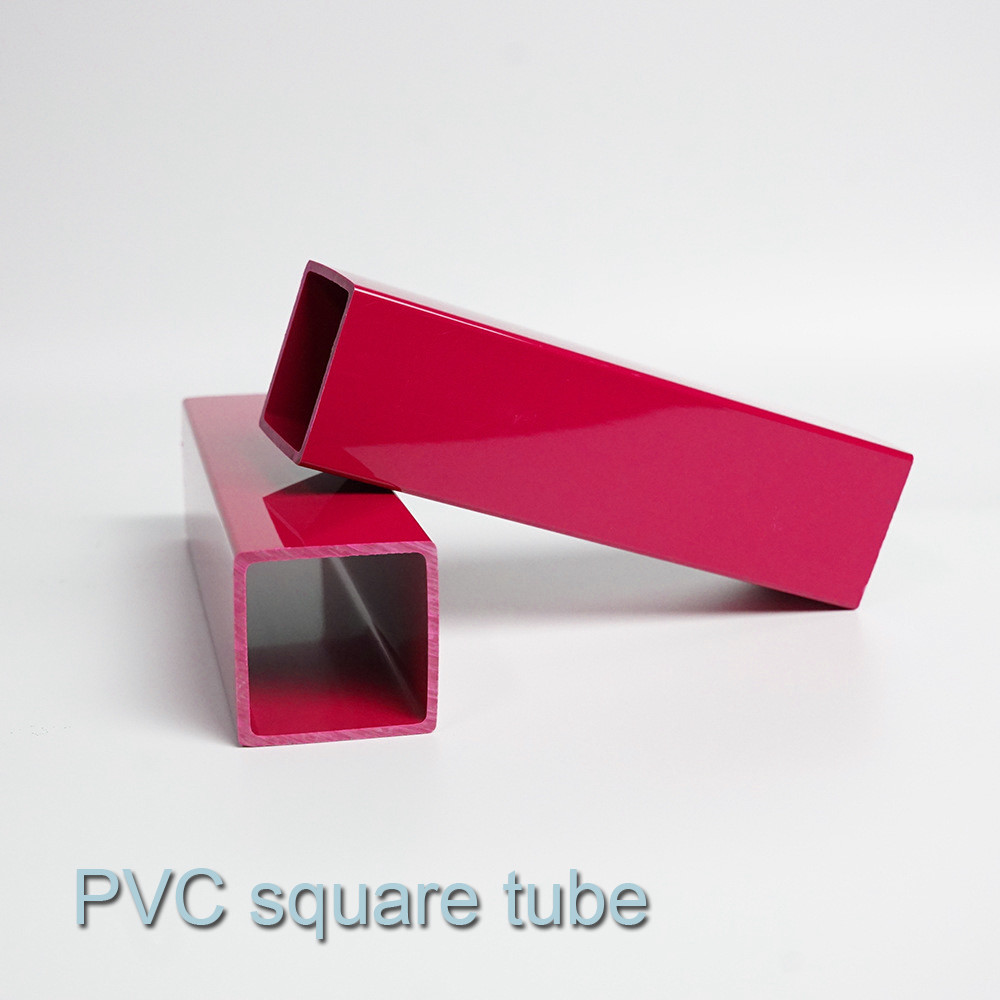

Colorful Square plastic PVC Extrusion Profiles Customized Rigid Appearance

Basic Information
Place of Origin: China
Brand Name: OEM
Minimum Order Quantity: 500kgs
Packaging Details: PE bag or carton or pallet
Delivery Time: 35 works days
Payment Terms: T/T
Supply Ability: 5000m per month
Detail Information
Material: PVC Or Other Shape: Round Or Square
PVC Extrusion: Cold Extrusion Processing Color: Customized
Package Or Other Use: Non Toxic PVC Tube: Rigid
High Light:

Square Rigid PVC Extrusion Profiles

,

Square plastic PVC Extrusion Profiles

,

Rigid PVC plastic extrusion profiles


Product Description

Round Or Square PVC Customized Profiles Rigid And Glossy Appearance Colorful



Description

PVC pipe is made of polyvinyl chloride resin, stabilizer, lubricant, etc. and then extruded by hot pressing method. It is the earliest plastic pipe that has been developed and applied. PVC is divided into soft PVC and hard PVC. Among them, hard PVC accounts for about 2/3 of the market, and soft PVC accounts for 1/3. Soft PVC is generally used for the surface of floors, ceilings and leather, but because soft PVC contains softeners (this is also the difference between soft PVC and hard PVC), it is easy to become brittle and difficult to store, so its scope of use is limited. Hard PVC does not contain softeners, so it has good flexibility, easy to form, and not easy to be brittle, non-toxic and pollution-free, has a long storage time, so it has great development and application value. The main application industries of PVC pipes are water supply pipes, household pipes, house wall panels, commercial machine shells, electronic product packaging, medical equipment, food packaging, etc.



Quick Details

Warranty: 1 years
Place of Origin: Jiangsu China
Brand Name: OEM
Product Name: Plastic extrusion profile
Material: PVC/UPVC/ABS/PP/PE or other plastic extrusion profile
Length: Customized Length
Thickness: 1.5mm-2.5mm
Shape: Customized
Color: Customized
Package: Carton or pallet
Port Shanghai
Lead time First batch 35 days
Application: Different Fields



What is plastic extrusion

The raw material (polymer) in the form of granulates, is gravity fed into the hopper and through the feed throat, drops on a rotating screw. Screw rotation is provided by an electric motor. The screw design varies and is dependent on the material and final product design. The rotation of the screw forces the plastic forward through a heated barrel. As the plastic is conveyed through the barrel the channel or thread of the screw decreases, thus compressing the plastic. Three or more independent Proportional Integral Derivative PID controllers, creating zones of gradually increasing temperature, heat the barrel. The plastic melt temperature is normally higher than the set temperature for the controllers. This additional heat is generated through a combination of compressive force and shear friction (shear heat). When the plastic melt reaches the end of the screw the plastic melt is well mixed and pushed through a screen pack, supported by a breaker plate, filtering contaminants and removing the materials rotational memory. Finally the filtered melt is then pushed through the die. The die gives the final product the desired profile and shape. After exiting the extruder the extrudate is pulled and cooled. The cooling method is dependent on the profile and shape of extrudate.



What is PVC density?

- PVC is chemically stable and does not de-polymerize.

- Density: 1.6 g/cm3



Colorful Square plastic PVC Extrusion Profiles Customized Rigid Appearance 0



About us
As a professional plastic extrusion profile and injection molding manufacturer, JF is specialized in production of all kinds of plastic extrusion profiles and injection molding products (including PVC, ABS, PS, PP, PE, PA, POM, PC, PMMA, EPS, PBT, PETG, TPX, etc.) that is applicable for refrigerator, freezer, cold chain and kitchen cabinet, vending machine, air conditioner and ventilating system, building and decoration industry, etc.. Integrating development, design, production and sales, we have28 plastic extrusion lines and 6 injection molding equipments, outputing 60000 tons of plastic profiles and injection parts annually.
