| Place of Origin: | China |
|---|---|
| Brand Name: | OEM |
| Minimum Order Quantity: | 500kgs |
| Packaging Details: | pallet |
| Delivery Time: | 35 works days |
| Payment Terms: | T/T |
| Waterproof: | Plastic Co-Extrusion | Dust Proof: | PVC Strip Soft |
|---|---|---|---|
| Co Extrusion: | 2 COLORS | Two Color: | BLACK AND GRAY |
| Anti UV: | PVC Material | SOFT And Rigid: | ABS With PVC Extrusion |
| High Light: | ABS snap frame extrusion,Hinge snap frame extrusion,custom extruded profiles ABS |
||

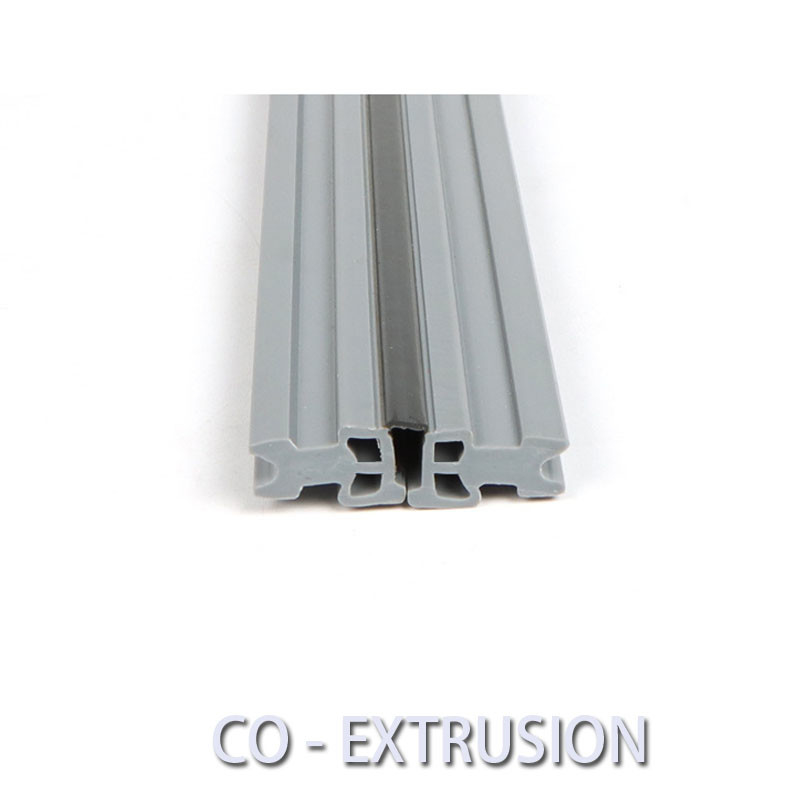

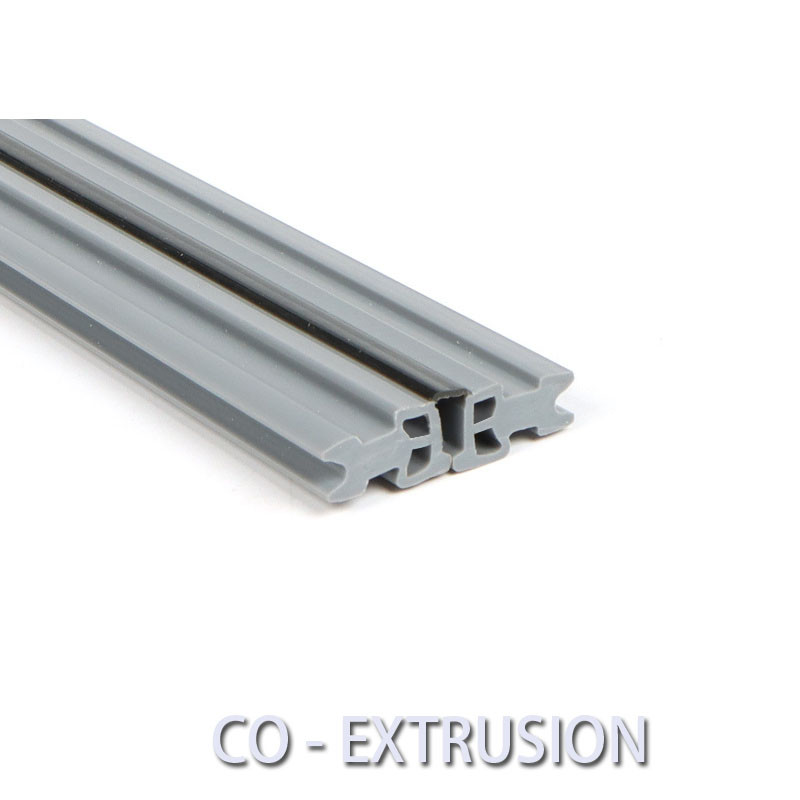

ABS Plastic Hinge Soft And Hard Co-Extrusion Strip Plastic Two-Color Clip
Description
JF Rubber and Plastic company is a premier plastic extruded profile manufacturer and supplier with OEM service since 2009. We can utilize our excellent extrusion technology and state of the art extruder equipment to produce the high gloss plastic extruded Profile Channels or Trims per your requirement.
Here we recommended co-extruded profiles.
Co extrusion profiles can use many different material, according the product features to adopt appropriate materials. So it is also widely used for automotive, appliances, furnishings, construction, toys. The processing is similar with extrusion but has two extruders.
Co-extruded plastic profiles combine and bond two or more different plastic materials into a one-piece product. Coextruded plastic technology uses two or more extruders and one profile die. The combined materials can be rigid and flexible, different colors, and different additive mixes. The co-extruded plastics can either be joined together or layered, but they must be compatible for strong bonding.
Common material combinations include:
• Rigid PVC/Flexible PVC
• Polyethylene/PE
• Polyurethane/TPU
Why co-extrusion required?
Co-extrusion is used for parts that require materials and properties that cannot be met with single polymers, such as increased strength, wear resistance, stiffness, and oxygen permeability.
Preferred Plastics, an industry-leading custom plastics extruder, offers high quality, co-extrusion services. Our state-of-the-art facilities are equipped with the latest technology to provide us with the capabilities to extrude your plastic part to specifications. We have earned the reputation for producing high quality products using the latest innovative technologies, all supported by superior customer service.
The co-extrusion process combines two or more different materials in a single extrusion process. Two or more extruders deliver the desired plastics to a single extrusion head, or die, to manufacture the part. The materials can be combined or layered, using different compounds for the layers. Preferred Plastics’ co-extrusion capabilities include:
Dual hardness profiles using multiple resins
Simple and complex shapes, manufactured to industry standard
Small and large shapes
Specifications
| Warranty(Year) | 1-Year or more |
| Place of Origin | Jiangsu, China |
| Material | PVC / ABS/PP/PE/PS/WPC etc |
| Shape | Customized |
| Product name | Plastic extrusion profiles |
| Color | White and gray normal, colorful available |
| Applicable Industries | supermarket, food enterprise, building material etc. |
| Supply Ability | 5000 Piece/Pieces per Month |
| Packaging & Delivery | Export packing or customized by customer |
| Port | Shanghai |
| Lead Time | first order 35 work days |
Common Plastic Densities
| MATERIAL | DENSITY(G/CM3) |
| PP | 0.89～0.93 |
| PP-T10 | 0.95～0.99 |
| PP-T20 | 1.03～1.07 |
| PP-T30 | 1.10～1.14 |
| PP-T40 | 1.19～1.25 |
| PP-EPDM | 0.86～1.92 |
| PP-EPDM-T10 | 0.94～1.00 |
| PP-EPDM-T15 | 1.00～1.04 |
| PP-EPDM-T20 | 1.03～1.07 |
| PP-EPDM-T25 | 1.07～1.11 |
| PP-EPDM-T30 | 1.10～1.16 |
| PA6 | 1.12～1.15 |
| PA66/6T-M30 | 1.44～1.49 |
| PMMA | 1.17～1.20 |
| PC | 1.18～1.22 |
| ABS | 1.04～1.08 |
| PC+ABS | 1.10～1.16 |
| PC+ASA | 1.12～1.18 |
| PC+PBT | 1.18～1.23 |
| PS | 1.03～1.07 |
| PA+ABS | 1.04～1.10 |
| TPV | 0.95～1.0 |
| TPU | 1.05～1.25 |
| TPC | 1.15～1.4 |
About us
As a professional plastic extrusion profile and injection molding manufacturer, our company is specialized in production of all kinds of plastic extrusion profiles and injection molding products (including PVC, ABS, PS, PP, PE, PA, POM, PC, PMMA, EPS, PBT, PETG, TPX, etc.) that is applicable for refrigerator, freezer, cold chain and kitchen cabinet, vending machine, air conditioner and ventilating system, building and decoration industry, etc.. Integrating development, design, production and sales, we have about 30 plastic extrusion lines and 6 injection molding equipments, outputing 50000 tons of plastic profiles and injection parts annually.
Main CO-EXTRUSION products review
Customized processing
