Non Standard PVC Plastic Extrusion Custom For Freezer door frame Long Service Life

Basic Information
Place of Origin: China
Brand Name: OEM
Minimum Order Quantity: 500kgs
Packaging Details: pallet
Delivery Time: 35 works days
Payment Terms: T/T
Detail Information
PVC Profiles: Extrusion Plastic Extrusion: PVC Material
Plastic Tube: Round Or Square PVC Tube Round Or Square: Plastic Package Or Other Use
Plastic Parts For Building Materials: PVC Extrusion PVC Parts: Column And Corner
Plastic Parts For Freezer: Customized Walk-in Freezer Profiles: White Gray Or Other
High Light:

PVC plastic corner extrusion

,

Freezer plastic corner extrusion

,

custom pvc extrusion square


Product Description

Freezer Use Plastic Extrusion Profiles PVC Material Colorful Long Service Life



Description:

PVC is polyvinyl chloride plastic, which belongs to a class of general-purpose plastics. Hard (without plasticizer) PVC products are often used as plastic doors and windows, water pipes, threading pipes, boards, etc., and soft (plasticizer) PVC products are often used in film, soft board, film, hose, medical products (such as infusion bags, etc.).

PVC is one of the largest plastic products in the world. It is cheap and widely used. Polyvinyl chloride resin is white or light-yellow powder. Different additives can be added according to different uses, and PVC plastics can exhibit different physical and mechanical properties. The regular processing of PVC is extrusion or injection.

Extrusion is a process where a material is pushed through a tool with a specialized shape called a die, producing continuous objects of a fixed cross sectional profile.



Specifications

Warranty(Year) 3-Year or more
Place of Origin Jiangsu, China
Material PVC / ABS/PP/PE/PS etc
Shape Customized
Product name Plastic extrusion profiles
Color White and gray normal, colorful available
Applicable Industries supermarket, food enterprise, building material etc.
Supply Ability 5000 Piece/Pieces per Month
Packaging & Delivery

Export packing or customized by customer

Port Shanghai
Lead Time

first order 35 work days





What is plastic extrusion

The raw material (polymer) in the form of granulates, is gravity fed into the hopper and through the feed throat, drops on a rotating screw. Screw rotation is provided by an electric motor. The screw design varies and is dependent on the material and final product design. The rotation of the screw forces the plastic forward through a heated barrel. As the plastic is conveyed through the barrel the channel or thread of the screw decreases, thus compressing the plastic. Three or more independent Proportional Integral Derivative PID controllers, creating zones of gradually increasing temperature, heat the barrel. The plastic melt temperature is normally higher than the set temperature for the controllers. This additional heat is generated through a combination of compressive force and shear friction (shear heat). When the plastic melt reaches the end of the screw the plastic melt is well mixed and pushed through a screen pack, supported by a breaker plate, filtering contaminants and removing the materials rotational memory. Finally the filtered melt is then pushed through the die. The die gives the final product the desired profile and shape. After exiting the extruder the extrudate is pulled and cooled. The cooling method is dependent on the profile and shape of extrudate.



What is PVC density?

- PVC is chemically stable and does not de-polymerize.

- Density: 1.32-1.6g/cm3

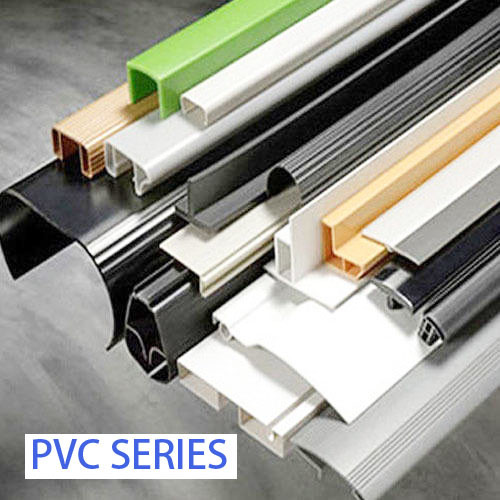

Non Standard PVC Plastic Extrusion Custom For Freezer door frame Long Service Life 0



About us
As a professional plastic extrusion profile and injection molding manufacturer, our company is specialized in production of all kinds of plastic extrusion profiles and injection molding products (including PVC, ABS, PS, PP, PE, PA, POM, PC, PMMA, EPS, PBT, PETG, TPX, etc.) that is applicable for refrigerator, freezer, cold chain and kitchen cabinet, vending machine, air conditioner and ventilating system, building and decoration industry, etc.. Integrating development, design, production and sales, we have about 30 plastic extrusion lines and 6 injection molding equipments, outputing 50000 tons of plastic profiles and injection parts annually.



The main product application

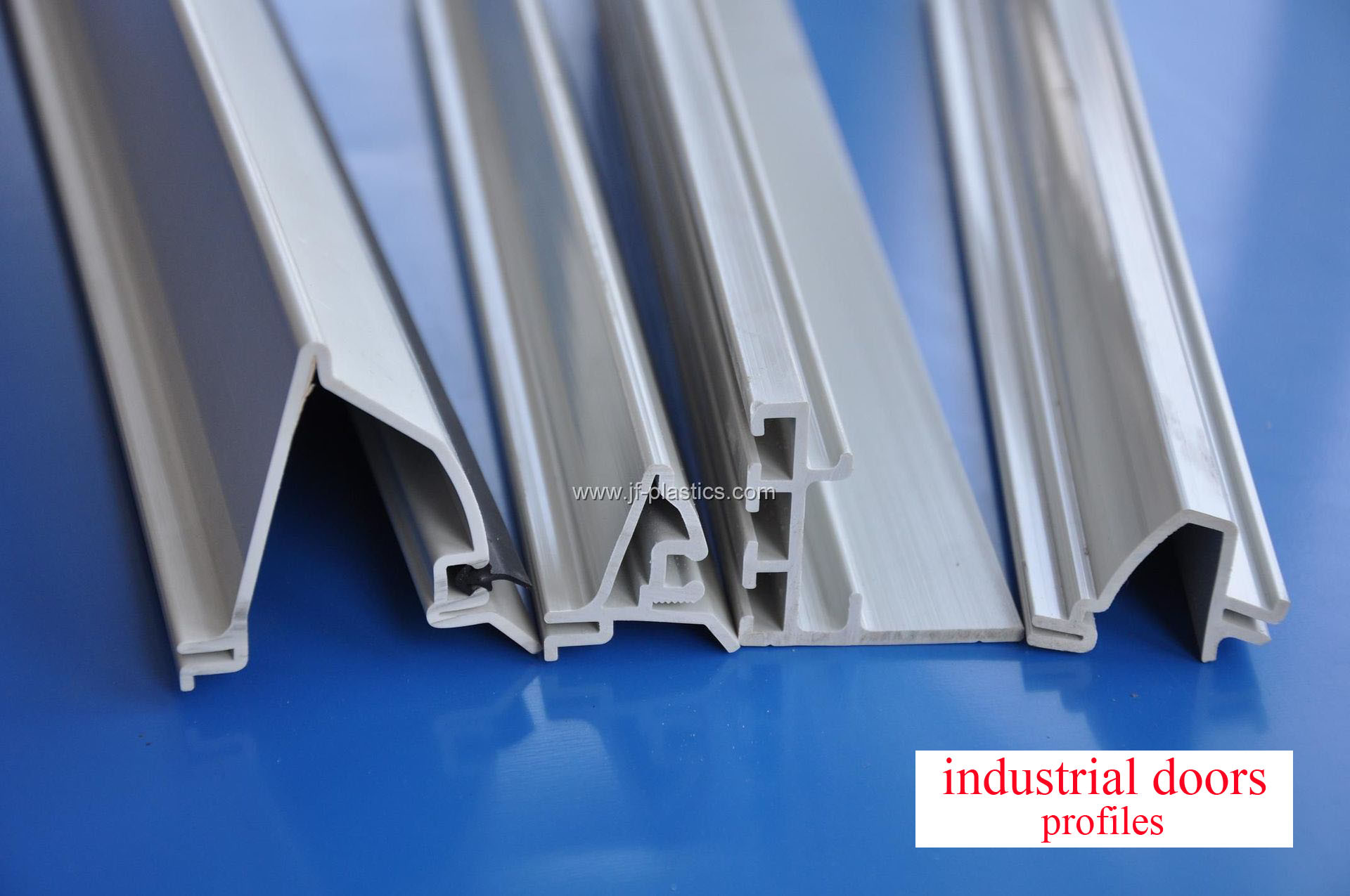

Non Standard PVC Plastic Extrusion Custom For Freezer door frame Long Service Life 1



Customized processing

Non Standard PVC Plastic Extrusion Custom For Freezer door frame Long Service Life 2
