Upvc PVC Rigid Prototype Plastic Extrusions U Shape Profiles

Basic Information
Minimum Order Quantity: 300KGS
Price: Negotiable
Packaging Details: carton or pallet
Delivery Time: 35 work days
Detail Information
PVC Extrusion: RIGID Cashier Border: Black Or White Or Red
Environmental Protection: PVC Material Upvc Window Extrusion: HARD PVC
Color: Customized, White Black, Gold, Silver Lengh: According Device Limitation
Surface Treatment: Smooth, Textured, Wood Like Etc
High Light:

Upvc prototype plastic extrusions

,

PVC prototype plastic extrusions

,

Upvc u shape extrusion


Product Description

Upvc Window Extrusion Profiles PVC Hard Products White Or Other Color Option



Description

Poly-vinyl Chloride (PVC) is possibly the most versatile product from the chemical industry. It's used extensively in construction from siding, to wire insulation, to window frames to pipe. With the addition of a plasticizer, the compound becomes quite flexible and an excellent material for clear tubing.

UPVC, also known as Unplasticized Polyvinyl Chloride, is a low-maintenance building material used as a substitute for painted wood, mostly for window frames and sills when installing double glazing in new buildings, or to replace older single glazed windows.

UPVC doors and Windows since high air pressure strength, good water tightness, small air, rain permeability, low heat transfer coefficient, energy conservation, sound insulation, heat insulation, not easy to aging and other advantages, is quickly replacing steel Windows, aluminum alloy Windows.



Is UPVC better than wood?
Contrary to wooden windows, UPVC windows are weather resistant. They do not rot, warp or fade and once installed they will last you for decades. UPVC window frames are designed to stand extreme weather conditions.

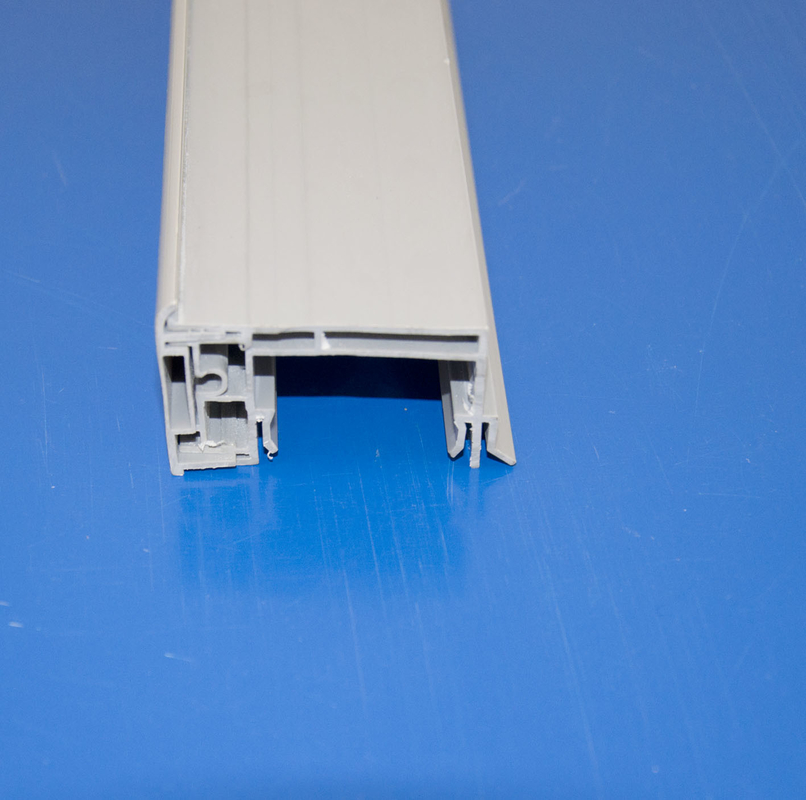

Upvc PVC Rigid Prototype Plastic Extrusions U Shape Profiles 0



Extrusion ​ PROCESSING

Extrusion is a process where a material is pushed through a tool with a specialized shape called a die, producing continuous objects of a fixed cross sectional profile.

The raw material (polymer) in the form of granulates, is gravity fed into the hopper and through the feed throat, drops on a rotating screw. Screw rotation is provided by an electric motor. The screw design varies and is dependent on the material and final product design. The rotation of the screw forces the plastic forward through a heated barrel. As the plastic is conveyed through the barrel the channel or thread of the screw decreases, thus compressing the plastic. Three or more independent Proportional Integral Derivative PID controllers, creating zones of gradually increasing temperature, heat the barrel. The plastic melt temperature is normally higher than the set temperature for the controllers. This additional heat is generated through a combination of compressive force and shear friction (shear heat). When the plastic melt reaches the end of the screw the plastic melt is well mixed and pushed through a screen pack, supported by a breaker plate, filtering contaminants and removing the materials rotational memory. Finally the filtered melt is then pushed through the die. The die gives the final product the desired profile and shape. After exiting the extruder the extrudate is pulled and cooled. The cooling method is dependent on the profile and shape of extrudate.



QUICK REVIEW

Warranty: 3 years

Place of Origin: Jiangsu China

Brand Name: OEM

Product Name: Plastic extrusion profile

Material: PVC/UPVC/ABS/PP/PE or other plastic extrusion profile

Length: Customized Length

Thickness: 1.5mm-2.5mm

Shape: Customized

Color: Customized

Package: Carton or pallet

Port Shanghai

Lead time First batch 35 days

Application: Different Fields



How to Order Extruded PVC Plastic Profiles ?

1. Sample & Mold

Q: Can I have a trial order or samples to test the quality and function of my customized plastic rigid or flexible PVC extrusion profile?

A: Of course! Free samples can be provided after extrusion dies on your shipping cost. So you can test the samples before mass production.



2. Delivery Time

Q: How long is your delivery time?

A: New tooling will take 15 days for tubing dies, while 20 days for profiles. Samples will be provided after tooling tests.



3. Payment Terms

Q: What are your terms of payment?

A: T/T for the mass production order, PayPal and Western-union for samples.



4. Quotation

Q: How can I get the quotation?

A: Please send us information for the quote: drawing, material, application background. We can accept CAD, PDF, DWG, STEP file formats.

If you don’t have a drawing, please send the sample to us, we can quote base on your sample too.

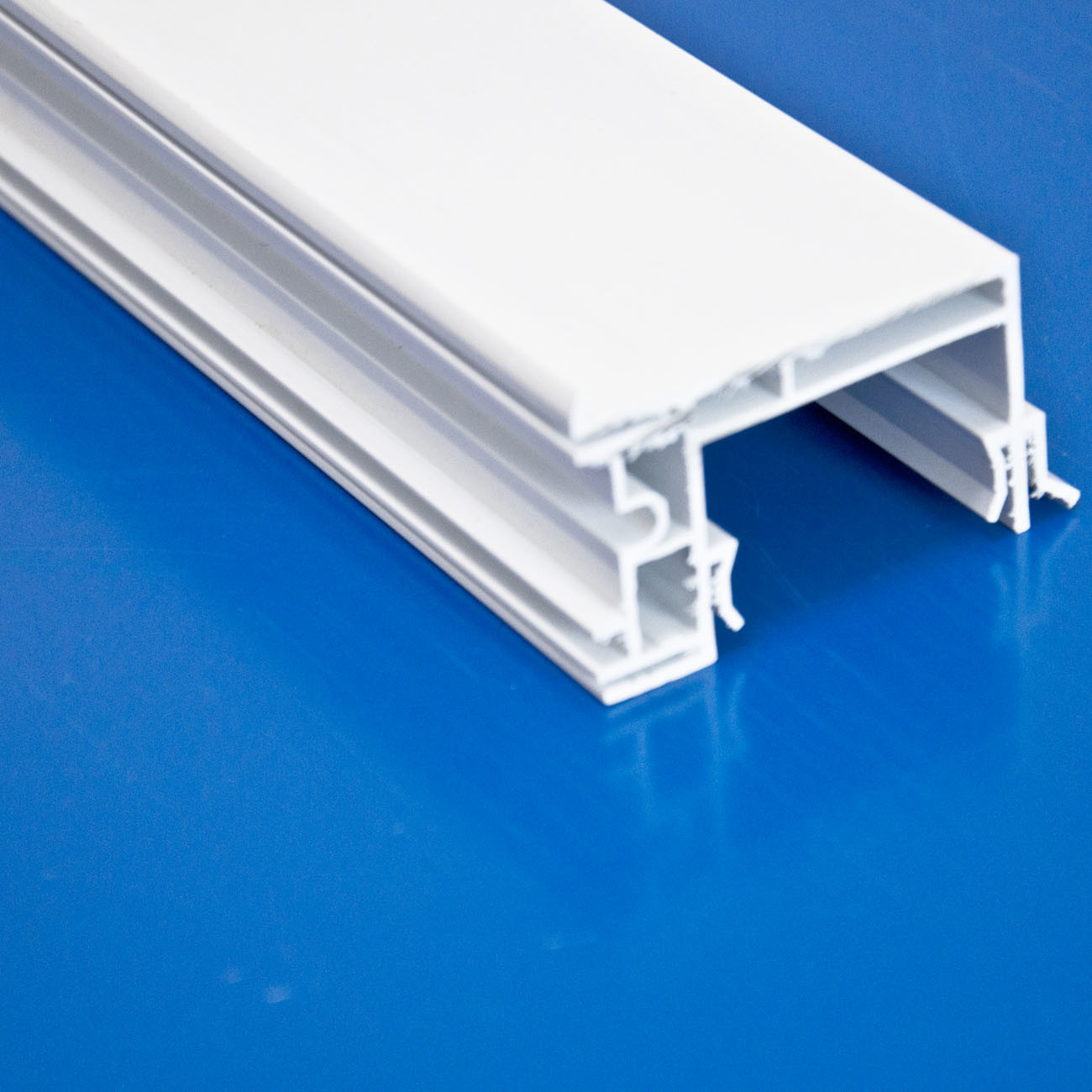

Upvc PVC Rigid Prototype Plastic Extrusions U Shape Profiles 1

Upvc PVC Rigid Prototype Plastic Extrusions U Shape Profiles 2

Upvc PVC Rigid Prototype Plastic Extrusions U Shape Profiles 3
