RIGID Extrusion: | Customized Color | Matt Surface: | Cacuum Extrusion |
---|---|---|---|
Right Angle Flange: | Shape By Drawing | Flame Retardant: | PVC |
Econormical: | Energy Saving | Length: | Can Be Cut |
Color: | Gray Or Other | ||
High Light: | PVC extruded plastic angle,flexible extruded plastic angle,Corner flexible pvc extrusion |

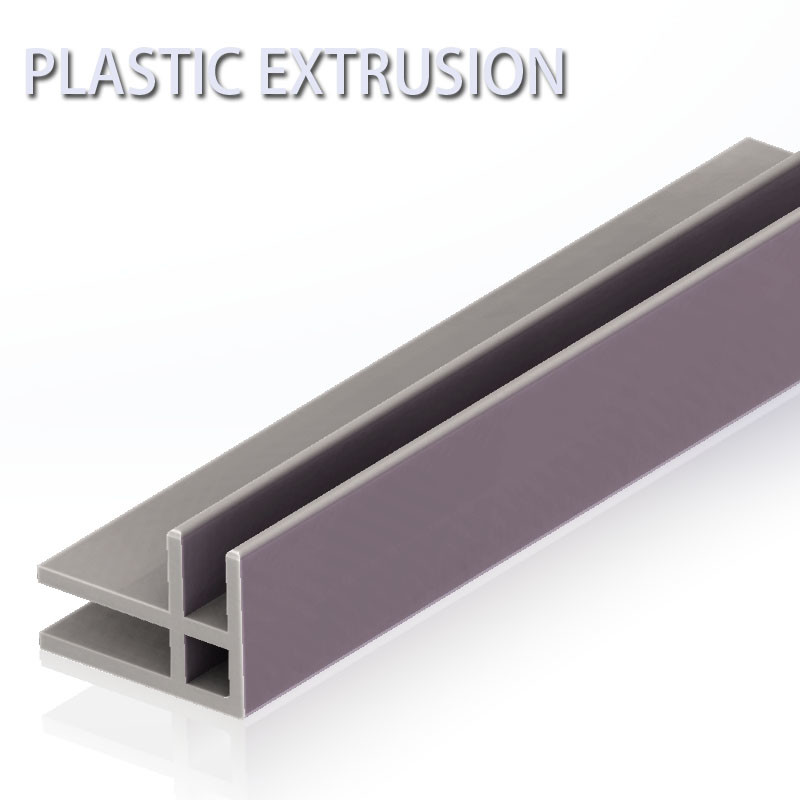

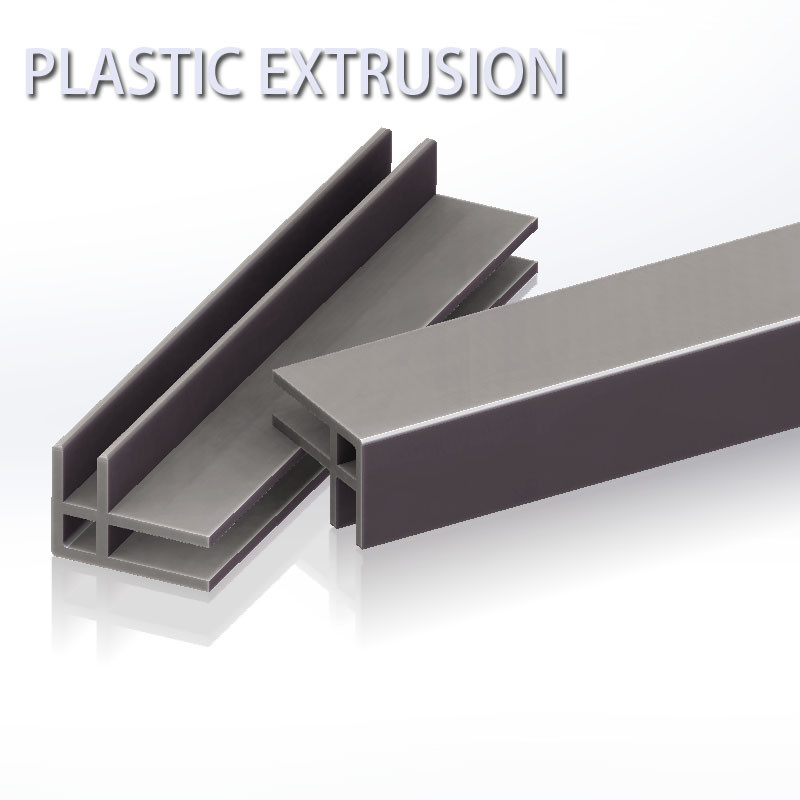

Flame Retardant Pvc Profile Right Angle Flange Profile Plastic Corner Weldable Profile PVC Extrusion Strip
Description
Polyvinyl chloride, abbreviated as PVC in English, is a polymer formed by the polymerization of vinyl chloride monomer in initiators such as peroxides and azo compounds, or under the action of light and heat according to the mechanism of free radical polymerization. PVC profiles are PVC extruded plastic materials with irregular cross-sections, including door and window profiles, plastic edging, plastic moldings, PVC pipes, U-shaped grooves, etc. PVC profiles have the characteristics of energy saving, heat insulation, sound insulation, good sealing performance, anti-corrosion, and beautiful appearance. They are widely used in construction, home decoration, automobile, medical and other industries, and are indispensable materials for the development of many industries.
What is FLANGE?
A flange is a protruded ridge, lip or rim, either external or internal, that serves to increase strength (as the flange of an iron beam such as an I-beam or a T-beam); for easy attachment/transfer of contact force with another object (as the flange on the end of a pipe, steam cylinder, etc., or on the lens mount of a camera); or for stabilizing and guiding the movements of a machine or its parts (as the inside flange of a rail car or tram wheel, which keep the wheels from running off the rails). The term "flange" is also used for a kind of tool used to form flanges.
Main features
PVC profiles with functional additives have anti-aging, ultraviolet resistance, corrosion resistance, high strength, cheap price, good insulation and heat insulation performance, can partially replace aluminum profiles, steel, etc.The contamination is lower than the aluminum profiles.
Quick Details
Warranty: | 3 years |
Place of Origin: | Jiangsu China |
Brand Name: | OEM |
Product Name: | Plastic extrusion profile |
Material: | PVC/UPVC/ABS/PP/PE or other plastic extrusion profile |
Length: | Customized Length |
Thickness: | 1.5mm-2.5mm |
Shape: | Customized |
Color: | Customized |
Package: | Carton or pallet |
Port | Shanghai |
Lead time | First batch 35 days |
Application: | Different Fields |
Development history
PVC profile products have experienced the introduction period and high-speed development period, from the perspective of time, can be defined as the 1980s-mid-1990s and 1995-2002 respectively.After 2003, the PVC profile industry has entered a transition period.
Since 1995, a number of enterprises with strength, began to digest and absorb the technical essence of foreign European profiles, developed their own doors and Windows series, become the leading of domestic plastic doors and Windows, promote the technical update and development of doors and Windows, but also make the whole industry get unprecedented development and high-speed growth.
As one of the products of scientific and technological development, PVC pipe is within reach in daily life.In Europe, plastic tubes grew by 8% in 1980 to 1990 and produced 3.5 million tons in 2001, with PVC tubes accounting for 60%.The United States produced 1.6 million tons of plastic tubes in 1985, and in 1999 it produced about 3.6 million tons, of which PVC tubes accounted for 78%.China's first UPVV expansion pipe was born in 1983 in Shenyang Plastic Factory (now the predecessor of Shenyang Jiuli), and since then, Chinese mainland has the production capacity of PVC water supply and drainage pipe.
List of common plastic densities
MATERIAL | DENSITY(G/CM3) |
PP | 0.89~0.93 |
PP-T10 | 0.95~0.99 |
PP-T20 | 1.03~1.07 |
PP-T30 | 1.10~1.14 |
PP-T40 | 1.19~1.25 |
PP-EPDM | 0.86~1.92 |
PP-EPDM-T10 | 0.94~1.00 |
PP-EPDM-T15 | 1.00~1.04 |
PP-EPDM-T20 | 1.03~1.07 |
PP-EPDM-T25 | 1.07~1.11 |
PP-EPDM-T30 | 1.10~1.16 |
PA6 | 1.12~1.15 |
PA66/6T-M30 | 1.44~1.49 |
PMMA | 1.17~1.20 |
PC | 1.18~1.22 |
ABS | 1.04~1.08 |
PC+ABS | 1.10~1.16 |
PC+ASA | 1.12~1.18 |
PC+PBT | 1.18~1.23 |
PS | 1.03~1.07 |
PA+ABS | 1.04~1.10 |
TPV | 0.95~1.0 |
TPU | 1.05~1.25 |
TPC | 1.15~1.4 |
About us
As a professional plastic extrusion profile and injection molding manufacturer, JF is specialized in production of all kinds of plastic extrusion profiles and injection molding products (including PVC, ABS, PS, PP, PE, PA, POM, PC, PMMA, EPS, PBT, PETG, TPX, etc.) that is applicable for refrigerator, freezer, cold chain and kitchen cabinet, vending machine, air conditioner and ventilating system, building and decoration industry, etc.. Integrating development, design, production and sales, we have28 plastic extrusion lines and 6 injection molding equipments, outputing 60000 tons of plastic profiles and injection parts annually.
