Extruded Silicone EPDM Rubber Profile U shape for Doors And Windows

Basic Information
Place of Origin: CHINA
Brand Name: OEM
Minimum Order Quantity: 5000m
Price: negociate
Packaging Details: carton; pallet etd.
Delivery Time: 35 work days
Payment Terms: T/T
Detail Information
Weather Resistance: SEAL STRIP Modified Propylene Rubber: EPDM
Freezer Sealing Bar: Working Temperature -40℃ To 130℃ U Channel: EPDM Products
Chemicals Resistance: Rubber Black Color Automobiles Doors: EPDM Seal Strip
High Light:

Extruded EPDM Rubber Profile

,

Silicone EPDM Rubber Profile

,

U extruded rubber profiles


Product Description

Rubber Special Seal Strip U Doors And Window Silicone Strip EPDM Dense Foam Rubber Strip



Description

EPDM rubber is a type of synthetic rubber. It is extremely durable and flexible and therefore has a wide range of applications, including in vehicles (where it is used for window and door seals, as well as cooling system hoses), cold-rooms, non-slip coatings for decks and playgrounds and many others besides.



we have to recommended its Corrosion resistance

Due to the lack of polarity and low unsaturation, it has good resistance to various polar chemicals, such as alcohol, acids, alkali, oxidants, refrigerants, detergents, animal and plant oils, ketones and lipids, but has poor stability in lipid and aromatic solvents (such as gasoline, benzene) and mineral oil. Under the long-term action of concentrated acid, the performance should also decrease. In ISO / TO 7620, nearly 400 corrosive gas and liquid chemicals are collected on various rubber properties, and levels 1-4 indicate the degree of action, the impact of corrosive chemicals on rubber properties:

Grade Volume swelling rate /% Hardness reduction value Impact on performance
1 <10 <10 Minor or no
2 10-20 <20 less
3 30-60 <30 secondary
4 >60 >30 serious



Quick review:

Material EPDM
Warranty(Year) 10Year
Place of Origin Jiangsu, China
Color Black regular
Design Customized
MOQ: 3000 Meters
Port Shanghai
Payment: TT
Delivery Time: 7 working days for mass production, 15 working days for mold building and prototypes
Hardness 40 Shore A-90 Shore A
Thickness 10 mm-150 mm
Min Working Temperature -50 deg C or customized
Max Working Temperature 150 deg C or customized



Function

Compared with other commonly used general rubber or special rubber, the main performance advantages of EPDM lie in the following aspects of :

(1) Economical. Raw rubber density is only 0.86~0.90g/cm3, is the lightest common rubber material; and can be filled other material to reduce the cost and increase the weight.

(2) Excellent aging resistance, weather resistance, ozone resistance, sunlight resistance, heat resistance, water resistance, water vapor resistance, ultraviolet resistance, radiation resistance and other aging properties, and other unsaturated diene rubber such as NR, SBR, N R, N BR, and CR, EPDM can play the role of polymer antioxidant or anti-aging agent.

(3) Excellent chemical resistance, acid, alkali, detergent, animal and plant oil, alcohol and alcohol, ketones, etc.; outstanding water resistance, hot water resistance, water vapor resistance; polar oil resistance.

(4) Excellent insulation performance, volume resistivity of 1016Q · cm, breakdown voltage of 30~40MV / m, dielectric constant (1kHz, 20℃) of 2.27.

(5) The applicable temperature range is wide, and the minimum use temperature is-40~ -60℃, which can be used in 130℃ conditions for a long time.



About US

JF Rubber and Plastics Co., ltd offers a comprehensive range of extruded rubber profiles to suit almost every application. Our service covers the designing, manufacture, inspection and delivery. Our company manufactures a wide range of Rubber Extruded Profiles which are widely used as insulators for Aluminium profiles, UPVC profiles, weather channels, dust protection and door packing. These are manufactured using high quality EPDM raw material and we manufacture them as per the international standards. Further, these are highly effective and long lasting in nature.

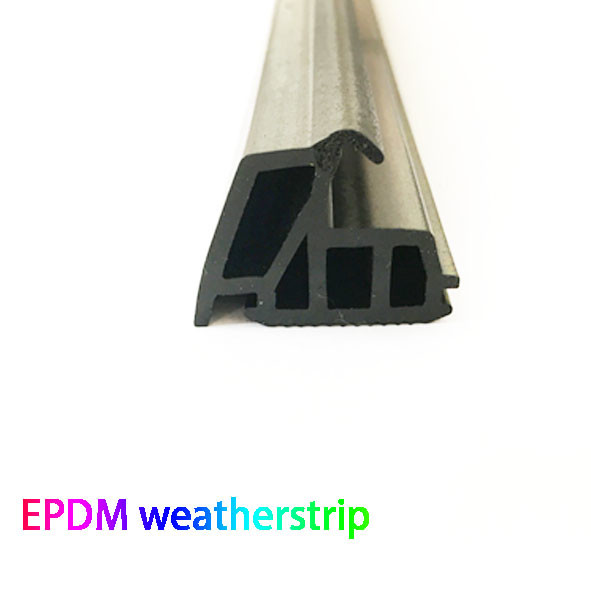

Extruded Silicone EPDM Rubber Profile U shape for Doors And Windows 0

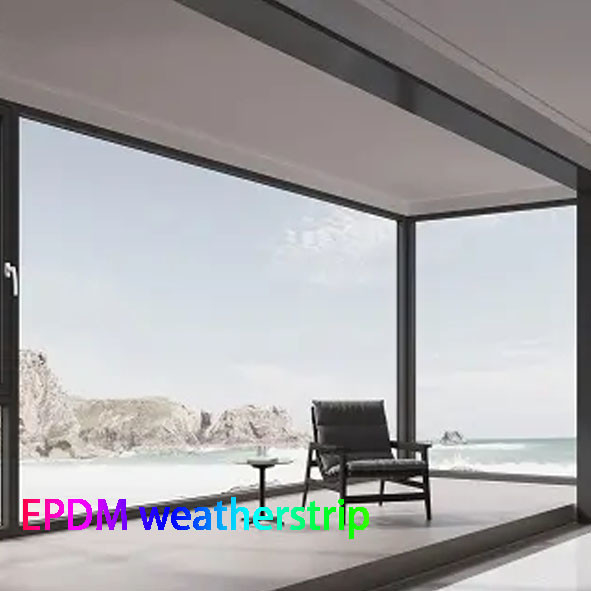

Extruded Silicone EPDM Rubber Profile U shape for Doors And Windows 1

What is the difference between rubber and EPDM?

Both rubbers can withstand general weathering, Ozone and UV making them ideal for outdoor applications. Tear strength/resistance is how resistant a rubber is to tearing. EPDM has good tear strength and is seen as the more durable rubber compared to silicone





Extruded Silicone EPDM Rubber Profile U shape for Doors And Windows 2

Extruded Silicone EPDM Rubber Profile U shape for Doors And Windows 3



Extruded Silicone EPDM Rubber Profile U shape for Doors And Windows 4
