Weather Resistance: | SEAL STRIP | Modified Propylene Rubber: | EPDM |
---|---|---|---|
Freezer Sealing Bar: | Working Temperature -40℃ To 130℃ | U Channel: | EPDM Products |
Glazing Buffer: | Rubber Black Color | Automobiles Doors: | EPDM Seal Strip |
Highlight: | D Shape EPDM Glazing Buffer,Aging Resistance EPDM Glazing Buffer,UV Resistance EPDM Glazing Buffer |

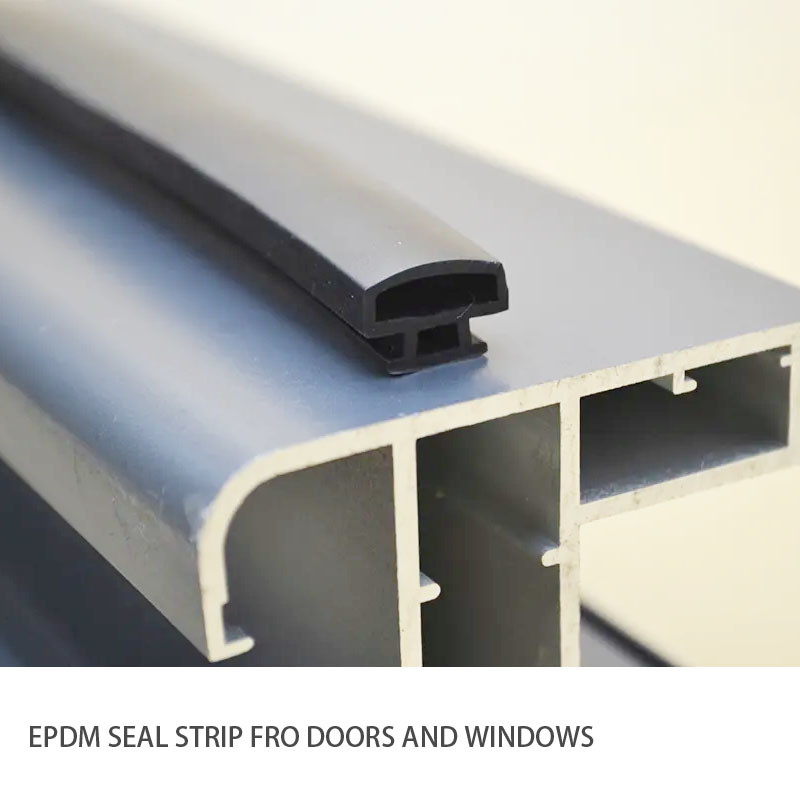

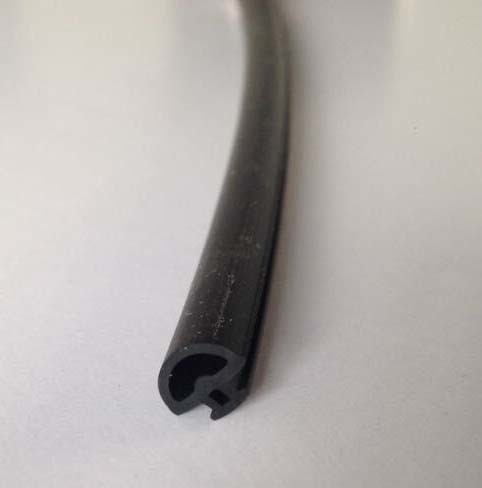

Black D Shape EPDM Glazing Buffer Anti Water UV Aging Resistance
Description
Ethylene Propylene Diene Monomer Rubber, also named as EPDM in short, is the polymer of ethylene and propylene. Large scale commercial production began in 1963 and the current overall global consumption of EFPM are 800,000 tons per year. EPDM is polyolefine - categorized and has excellent performance of vulcanization and its gravity is the lowest among all rubbers.
These are radon copolymers of the two hydrocarbons ethylene and propylene with the ethylene varying from 40 to 70% by weight. This produces a saturated rubber, EPM, which has to be vulcanized with peroxide systems. Small quantities of a third monomer are, therefore added to produce ethylene-propylene terpolymers (EPDM) which can be vulcanized with sulphur in the usual way. Both types have outstanding resistance to sunlight, ozone and all forms of aging and weathering; together with a capacity to accept large loadings of extender oil and fillers without undue loss of physical properties. So far, their use in tyres has been limited mainly due to processing difficulties, although blends with up to 20% of EPDM have been successfully adopted by some manufacturers, particularly for sidewalls. Recent developments indicate more extensive use of EPDM in tyres. Non-tyre applications for EPDM include automobile components, roller coverings, acid hose, general building applications, reservoir linings and roofing sheet. Another important application for EPM and EPDM is in electric cable insulation.
Quick review:
Material | EPDM |
Warranty(Year) | 10Year |
Place of Origin | Jiangsu, China |
Color | Black regular |
Design | Customized |
MOQ: | 3000 Meters |
Port | Shanghai |
Payment: | TT |
Delivery Time: | 7 working days for mass production, 15 working days for mold building and prototypes |
Hardness | 40 Shore A-90 Shore A |
Thickness | 10 mm-150 mm |
Min Working Temperature | -50 deg C or customized |
Max Working Temperature | 150 deg C or customized |
Function
Compared with other commonly used general rubber or special rubber, the main performance advantages of EPDM lie in the following aspects of :
(1) Economical. Raw rubber density is only 0.86~0.90g/cm3, is the lightest common rubber material; and can be filled other material to reduce the cost and increase the weight.
(2) Excellent aging resistance, weather resistance, ozone resistance, sunlight resistance, heat resistance, water resistance, water vapor resistance, ultraviolet resistance, radiation resistance and other aging properties, and other unsaturated diene rubber such as NR, SBR, N R, N BR, and CR, EPDM can play the role of polymer antioxidant or anti-aging agent.
(3) Excellent chemical resistance, acid, alkali, detergent, animal and plant oil, alcohol and alcohol, ketones, etc.; outstanding water resistance, hot water resistance, water vapor resistance; polar oil resistance.
(4) Excellent insulation performance, volume resistivity of 1016Q · cm, breakdown voltage of 30~40MV / m, dielectric constant (1kHz, 20℃) of 2.27.
(5) The applicable temperature range is wide, and the minimum use temperature is-40~ -60℃, which can be used in 130℃ conditions for a long time.
About US
JF Rubber and Plastics Co., ltd offers a comprehensive range of extruded rubber profiles to suit almost every application. Our service covers the designing, manufacture, inspection and delivery. Our company manufactures a wide range of Rubber Extruded Profiles which are widely used as insulators for Aluminium profiles, UPVC profiles, weather channels, dust protection and door packing. These are manufactured using high quality EPDM raw material and we manufacture them as per the international standards. Further, these are highly effective and long lasting in nature.
What is the difference between rubber and EPDM?
Both rubbers can withstand general weathering, Ozone and UV making them ideal for outdoor applications. Tear strength/resistance is how resistant a rubber is to tearing. EPDM has good tear strength and is seen as the more durable rubber compared to silicone
